DIN Rail Mount 8 Channel NPN Type 5V 15A Power Relay Interface Module, JQC-3FF-5V-1ZS Relay

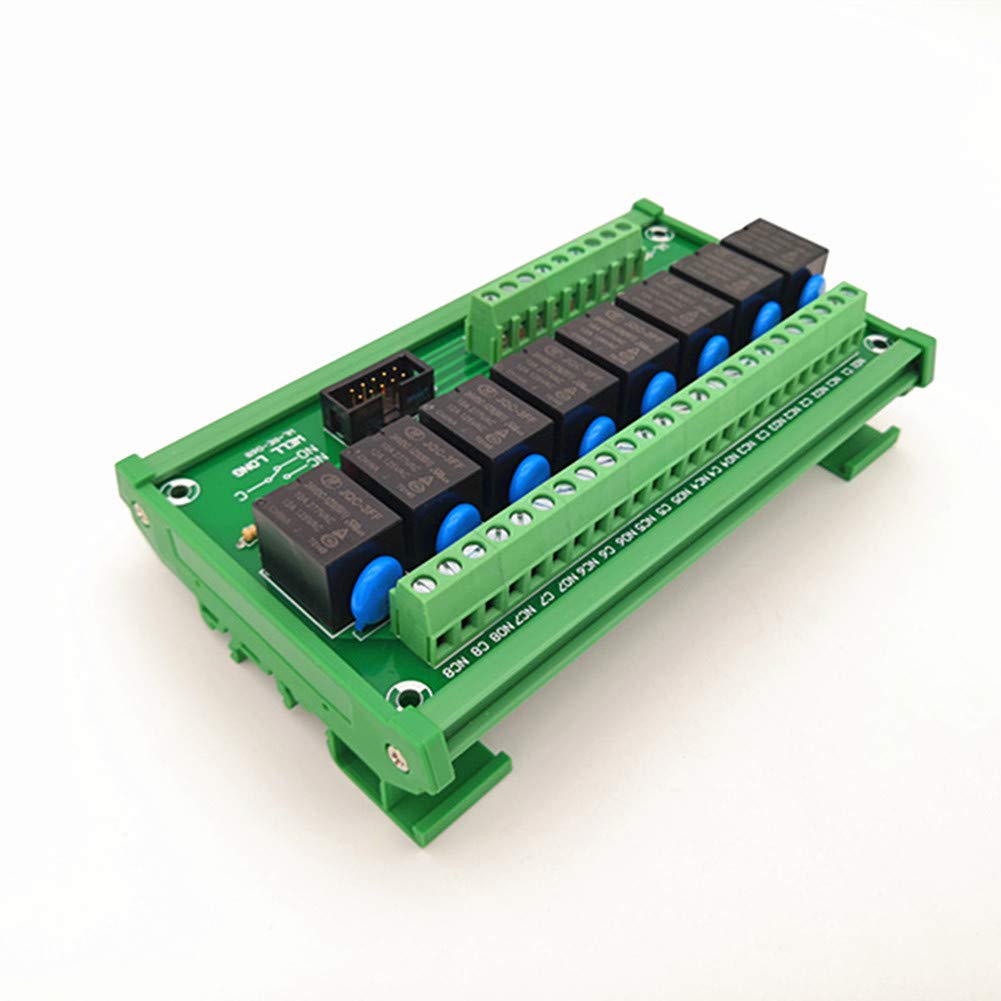

DIN Rail Mount 8 Channel NPN Type 5V 15A Power Relay Interface Module,HFJQC-3FF-5V-1ZS Relay ( Show Picture is 24V ). The use of HF original relays, traditional electronic components, stable and reliable performance. 5V Version, HFJQC-3FF-5V-1ZS Relay. Switching current upto 15A at 250VAC (or 30VDC). Each channel has an LED indicator. Each channel is protected by surge absorption. High quality PCB housing/carrier ,DIN rail mountable - for width 35 / 32 / 15mm rails. FR-4 fiber glass PCB, dual copper layers. PCB dimensions: 145*72.5mm( L x W ). External dimensions: 147*87*42mm(L x W x H). 100% new, never used. RELAY COIL DATA: Nominal Voltage:5VDC Coil Resistance:70 Omega(plusmn10%) Rated Current:15A Pick-up Voltage VDC:3.8VDC Drop-out Voltage VDC:0.5VDC RELAY CONTACT DATA: Contact Form: 1H/1Z Contact Ratings:1H:10A 240VAC 1Z:7A 240VAC Max Switching Voltage:250VAC/30VDC Max Switching Current:15A Max Switching Power:2770VA/240W Contact Resistance:100mOmega Electrical Life:100,000 Operations(at30Operations/minute) Mechanical Life:10,000,000 Operations(at300Operations/minute) CN1/CN2 Terminal Block Parameter : Pitch 5.08mm/0.2" Wire range 24AWG ~ 12AWG / 2.5mm2 Rated voltage 400V, rated current 24Amp. Strip length 7mm. Screws - M3,steel,Cr3+ Zn plated. CN3:The use DC3 6Pin 2.54mm socket for easy connection

• 5V Version, Use JQC-3FF-5V-1ZS Relay.
• Switching current upto 15A at 250VAC (or 30VDC).
• Each channel has an LED indicator,Each channel is protected by surge absorption.
• High quality PCB housing/carrier ,DIN rail mountable - for width 35 / 32 / 15mm rails.
• FR-4 fiber glass PCB, dual copper layers.
