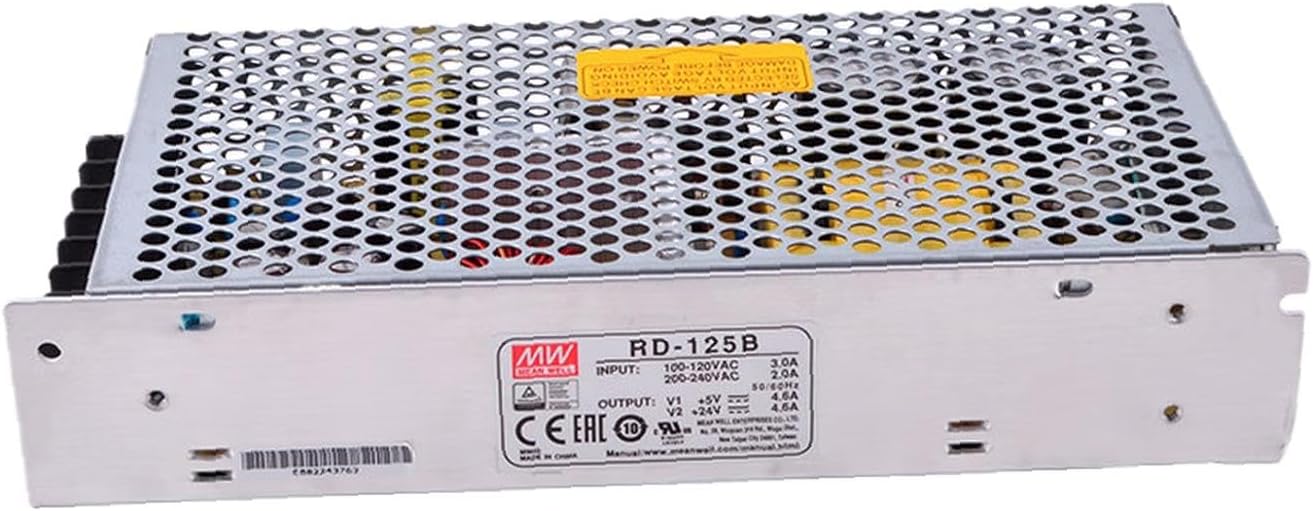

Enclosed Type 133.4W RD-125B AC-DC Dual Output RD-125 Series Switching Power Supply

The RD-125B switching power supply is a highly efficient industrial grade AC/DC dual output switching power supply designed for reliable performance in demanding applications. This dual output power supply provides 5V and 24V DC with a current capacity of 4.6A per channel, a total output power of 133.4W, and a typical efficiency of 85%. It has wide input voltage flexibility, operating in the range of 88-132VAC/176-264VAC (switch selectable) or 248-373VDC, and can withstand 300VAC surge input for 5 seconds without damage. The power supply has excellent voltage stability, with a main channel voltage accuracy of ±5%, a line regulation of ±1%, and a load regulation of ±3%. Its advanced design ensures low ripple and noise levels (maximum 80mVp-p) and stable operation over the temperature range of -25℃ to +75℃. Safety features include comprehensive overvoltage, overcurrent and short-circuit protection, in compliance with UL/EN/IEC 60950-1 safety standards.

• The RD-125B switching power supply is a highly efficient industrial grade AC/DC dual output switching power supply designed for reliable performance in demanding applications.
• This dual output power supply provides 5V and 24V DC with a current capacity of 4.6A per channel, a total output power of 133.4W, and a typical efficiency of 85%.
• It has wide input voltage flexibility, operating in the range of 88-132VAC/176-264VAC (switch selectable) or 248-373VDC, and can withstand 300VAC surge input for 5 seconds without damage.
• The power supply has excellent voltage stability, with a main channel voltage accuracy of ±5%, a line regulation of ±1%, and a load regulation of ±3%.
• Its advanced design ensures low ripple and noise levels (maximum 80mVp-p) and stable operation over the temperature range of -25℃ to +75℃.
