YN4561I Serial Port Module, Isolated 6 in 1 FT232 USB to RS485/422/232/TTL Converter, Electronic Component with 1kV Isolation for, OS X, Linux, Android, Plug and Play

Item Type: Serial Port ModuleMaterial: ABSModel: YN4561IUSB Compatibility: Compliance with USB 2.0 standards, support hot swap plug-and-playPort DesignUSB: Standard b square port, equipment comes with a turn b wireRS232: Standard DB9 serial port maleRS485 / 422: Plug-in terminalTTL: Insert terminalTransmission Rate: 1200bps - 115.2kbpsCheck Bit: Odd check, even check, no checkData Bit: 5, 6, 7, 8Stop Bit: 1, 1.5, 2RS232: TX, RX, GND, conforms to TIA / EIA-232RS485: D +, D- balance difference half duplex, in line with TIA / EIA-485 standardRS422: T +, T-, R +, R- balance differences full duplex, in accordance with TIA / EIA-42232 x RS-422 or RS-485 devices can be connectedTTL: VIO, RXIN, TXOUT, GND support 5V or 3V levelWork Distance: RS-232: 50ft(15 meters) at 9.6kbpsPackage List：1 x Serial Port Module1 x Cable1 x User ManualNote:Do not use outside the parameter voltage range.

• VERSATILE CONVERSION: The YN4561I Serial Port Module supports mutual conversion between USB and RS-232, USB and RS-422/485, USB and TTL, TTL and RS-232, TTL and RS-422/485, RS232 and RS-422/485. This makes it an essential tool for debugging and connecting various serial devices.
• HIGH ISOLATION PROTECTION: Featuring 1kV isolation between USB, RS-232, RS-485/422, and TTL, this module ensures safe and reliable operation by preventing electrical interference and protecting your devices from potential damage.
• WIDE COMPATIBILITY: Compatible with XP/Server2003/Vista/7/8/8.1/10, OS X, Linux, and Android, this serial port module is a universal solution for different operating systems. Simply connect via USB and install the driver to start using immediately.

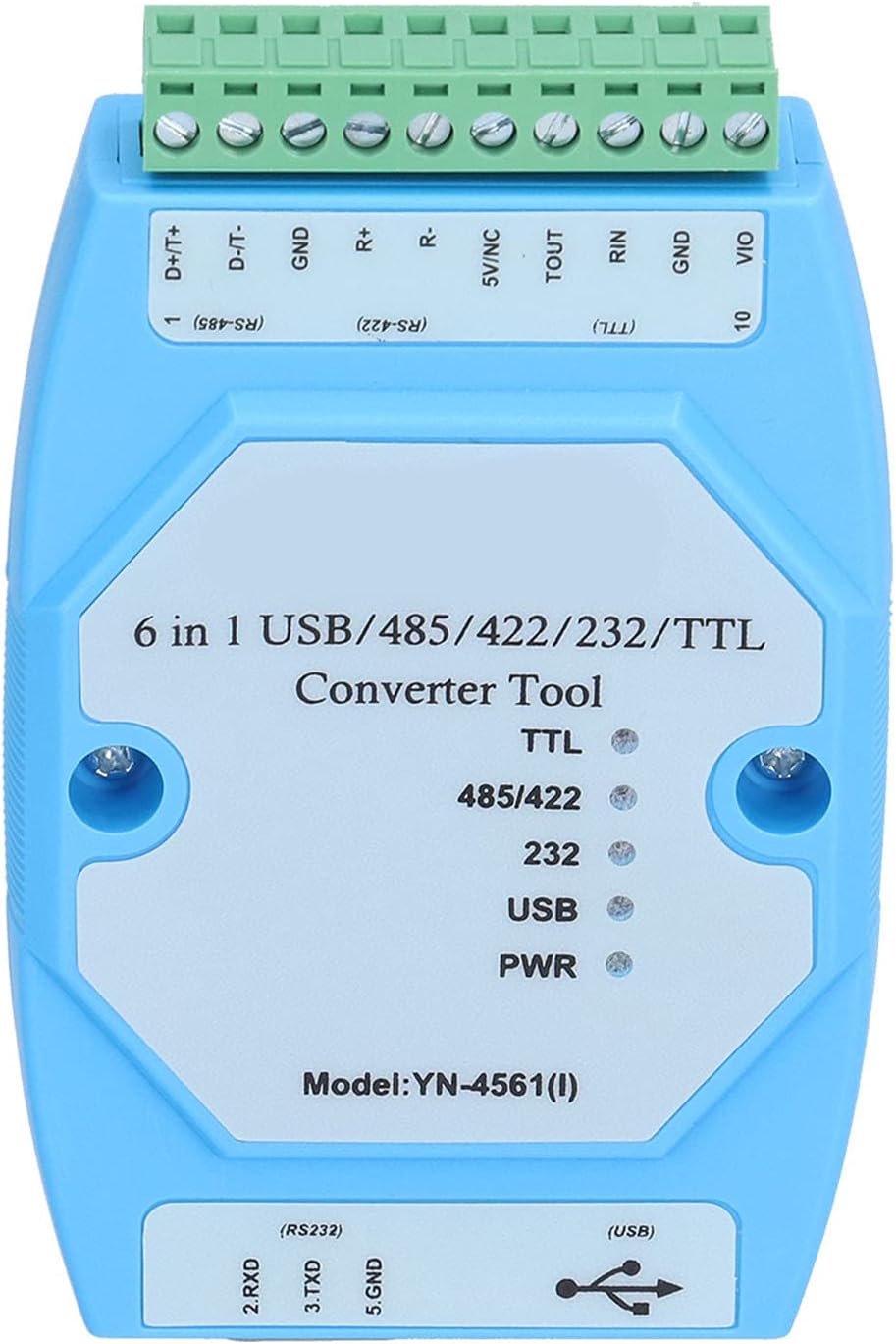

• EASY TO USE: No need for jumpers or DIP switches, this plug-and-play module simplifies the setup process. It includes a standard USB b square port, DB9 serial port male, and plug-in terminals for RS485/422 and TTL connections.
• DURABLE AND RELIABLE: Made from high-quality ABS material, this module is built to last. It supports hot swap plug-and-play and operates within a transmission rate range of 1200bps to 115.2kbps, ensuring in various applications.
